3WPQ-2000 series of sprayer is suitable for spraying the medicament for the planter of bean, corn, cotton, grain.
Also for lawn,fruiter,vegetable, road side tree. The capacity could be 1000L, the spraying could be φ7m with 40-200HP.
Advantages:
•This kind of boom sprayer is a tractor mounted sprayer.
•Wide working scope,spraying for bean,cotton,corn etc.
•Wide spraying to be φ7m max.and the working angle of this tractor sprayer could be adjusted.
•The capacity of mounted boom sprayer could be adjusted to meet different need from the user.

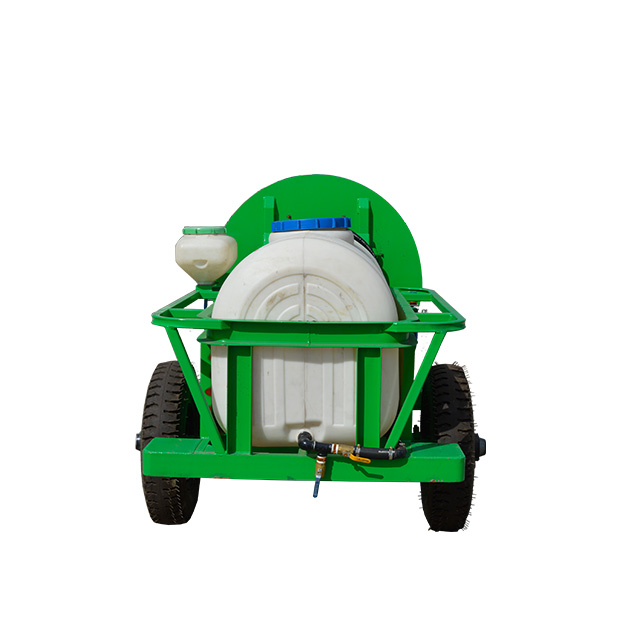

| Model | 3WFQ-1000 pulling orchard sprayer |
| Power | 40HP-200HP |
| Mixing way | Circulating water mixing |
| Ground clearance | 0.5 m |
| System work pressure | 0.3-0.5Mpa |
| 3 filtration system | Tank inlet, pump inlet, nozzle |
| Walking speed | 8-20km/h |
| Fan blade | Φ790 9-12 pieces |
| Blower fan speed | 960r / min |
| Wind pressure | <170pa |
| Overall dimension | 3540mm×1660mm×1530mm |
| Weight | 600kg |
| Pump type | Plunger pump |
| Pump pressure | 20-45kgf/cm² |
| Pump flow | 40-60L/min |
| Pump speed | 600-800r/min |
| Tank capacity | 1000L |
| Boom | Φ7m |
| Spray height | 3.5m |
| Nozzle model | No.3 |
| Spray angle | 80 ° |
| Nozzle flow | 1.2L/min |
| Water tank | 15L |
| Wheel track | 1.3-1.4m |
